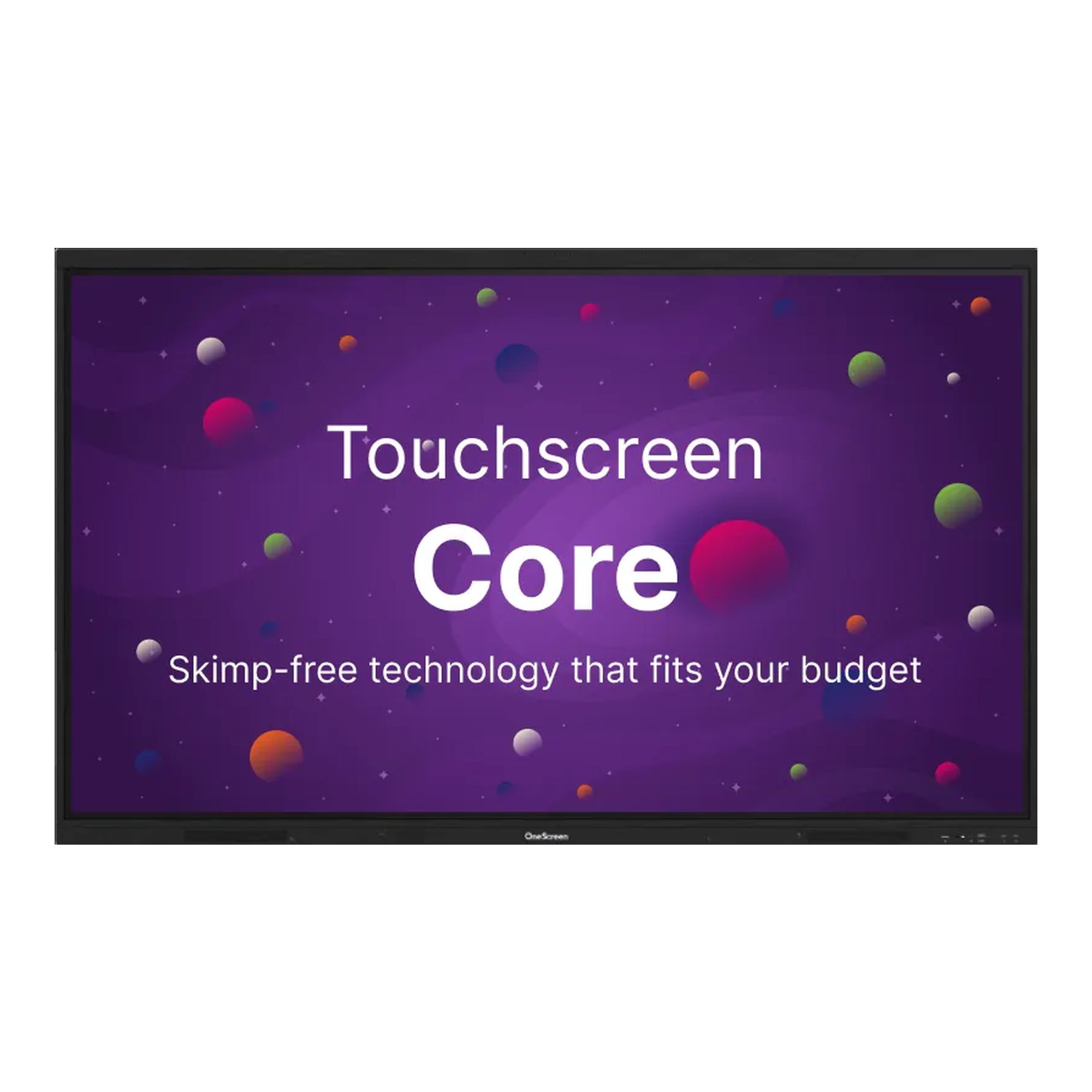

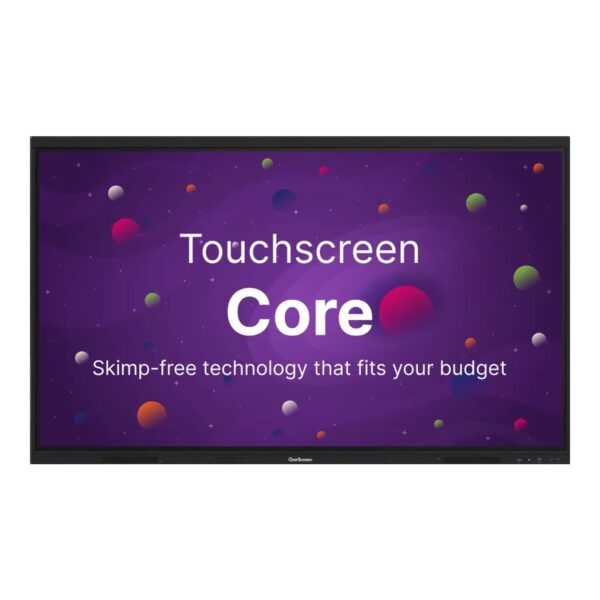

OneScreen Core Digital Touchscreen · Interactive Classes and Meetings

Intuitive to use from day one; ideal for classes and meetings

Android or Windows touchscreen.
Wireless connection to your device.
Built-in artificial intelligence tools.
Guru support and training included.
Ideal for educational institutions, businesses, government agencies, agribusiness, healthcare, media, and more.

Features

Available in 65″, 75″, 86″, 98″, and 110″
Compatible with OneScreen AI
Wireless connection to your devices
Android 16 with Google EDLA certification
Guru support and training (global 24/5 support in English)

Results from Day One

Ready at the Touch of a Button

Start the display instantly and begin your video conference or class without delays.

Compatible with OneScreen AI

Use the integrated AI suite to streamline classes, presentations, and tasks.

Share Wirelessly

Wirelessly cast your device over Wi-Fi and connect up to 30 devices simultaneously.

Official Android, Ready to Use

Get the full power of Android on your interactive display, powered by Google EDLA.

Centralized Management

Remote app installation. Install from the Google Play Store or deploy custom APK files.
Send messages and notifications. Send them to all your connected interactive displays with one click.
Download usage metrics. Analyze app and website usage patterns, as well as usage times.
Turn your displays on and off. Save time and energy with the click of a button.
Groups and profiles. Organize your displays into groups with different policies.

Technical Specifications

Display Specifications
Available Sizes	65″, 75″, 86″, 98″, and 110″
Panel Type	VA
Response Time	6.5 ms
Aspect Ratio	16:9
Display Area	1428.48 (H) × 803.52 (V) mm
Resolution	3840 (H) × 2160 (V)
Refresh Rate	60 Hz
Display Color	1.07B (10 bit)
NTSC Coverage	72%
Contrast Ratio	5000:1
Viewing Angle	178° (H/V)
Backlight Unit	DLED
Brightness (Typical)	400 cd/m² (65″, 75″, and 86″); 450 cd/m² (98″); 410 cd/m² (110″)
Operating System
Operating System Version	Android 16
RAM + ROM	8 GB + 128 GB (110″: 16 GB + 256 GB)
Processor (CPU)	Octa-core (4× A53 + 4× A73); 110″: ARM Cortex A76 ×4 + A55 ×4
Graphics (GPU)	Mali G52MP8 (110″: Mali-G610)
Touch Specifications
Detection Type	Infrared recognition
Compatible With	Stylus pen and fingers
Accuracy	± 1 mm (65″ to 98″)
Touch Points	40 touch points (65″, 75″, and 86″); 50 touch points (98″); ≥20 on Android and ≥40 on PC (110″)
Minimum Object Size	3 mm
Writing Height	≤ 2 mm
Interpolation Resolution	32768 (W) × 32768 (D)
Response Time	< 2.5 ms (65″ to 98″); ≤ 5 ms (110″)
System Compatibility	Windows 10 / 8 / 7 / XP, Android, Linux, Mac OS X, and Chrome
Audio Specifications
Audio Channels	2.0
Speaker Power	2 × 20 W (65″, 75″, and 86″); 2 × 25 W + 20 W subwoofer (98″); 40 W soundbar + 20 W subwoofer (110″)
Sound Pressure Level	85 dBSPL
Power Specifications
Power Requirements	100–240 V ~ 50/60 Hz, 3.5 A
Typical Power Consumption	185 W
Maximum Power Consumption (with OPS)	350 W
Ports and Connectivity
HDMI IN	3. Up to 4K@60Hz, ARC (HDMI 1); all HDMI ports support CEC.
HDMI OUT	1. Up to 4K@60Hz.
USB 2.0	1. For system updates.
USB 3.0	4. Front × 2, rear × 2. All USB 3.0 ports can automatically switch to the current channel.
USB Type-C IN	2. Front: up to PD 65 W (PD 15 W when OPS is connected). Built-in: PD 15 W.
TOUCH 3.0	2. Front × 1, rear × 1.
DP IN	1. 4K@60Hz.
VGA IN	1. Up to 1080P@60Hz.
AUDIO IN	1. 3.5 mm jack.
AUDIO OUT	1. 3.5 mm jack.
SPDIF	1. PCM output format.
RS232	1. Baud rate: 9600.
RJ45 IN	1. 10M / 100M / 1000Mbps.
RJ45 OUT	1. 10M / 100M / 1000Mbps.
TF Card	1. TF card slot.
