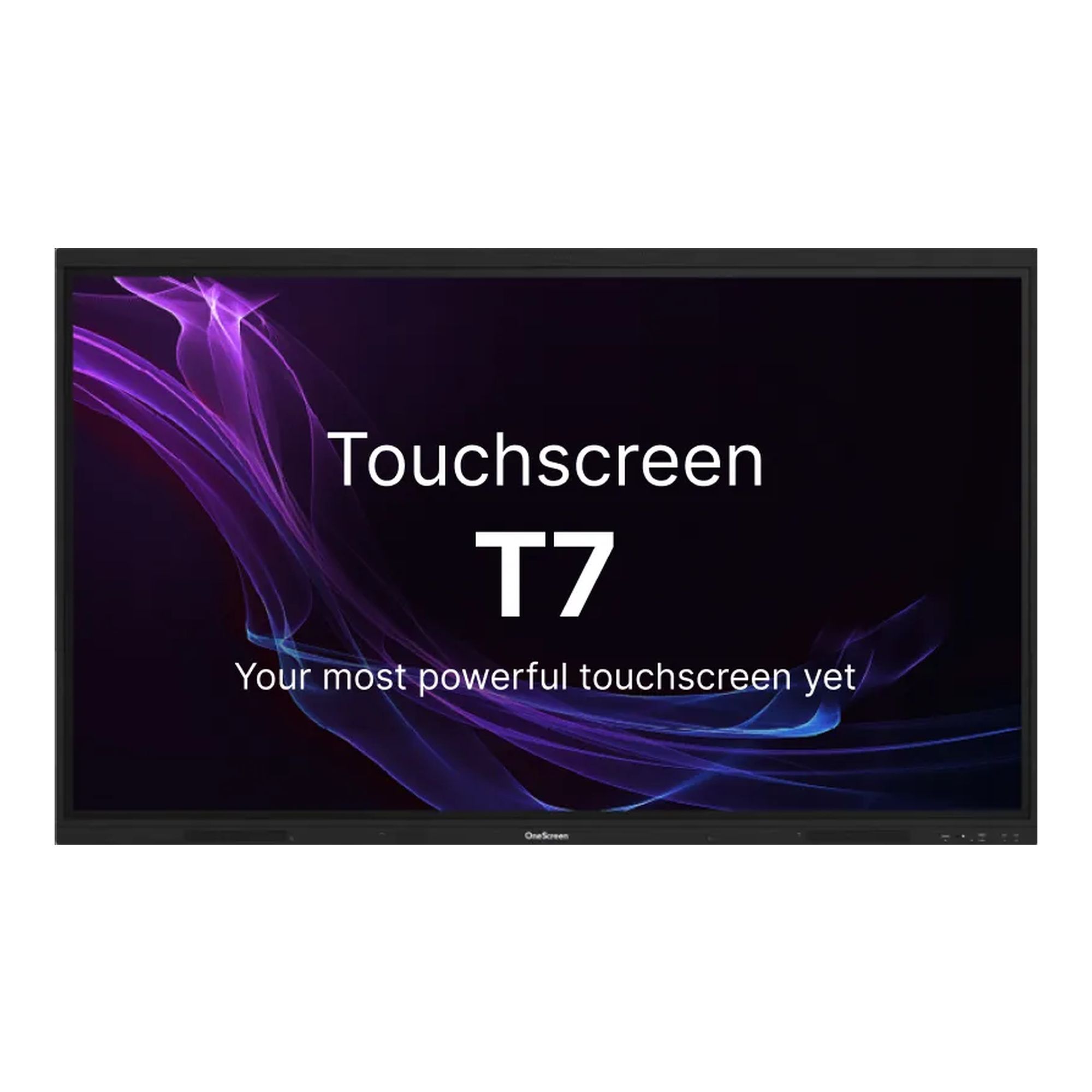

OneScreen T7 Digital Touchscreen · Interactive Classes and Meetings

The Ultimate Professional Performance: Education and Collaboration at the Next Level

Android or Windows interactive touchscreen.
Wireless connection to your device.
Built-in AI-powered tools.
Gurú support and training included.
Ideal for educational institutions, businesses, government agencies, agribusiness, healthcare, media, and more.

Features

Available in 65″, 75″, 86″ and 105″
Advanced integrated OneScreen AI
8 built-in microphones
Android 15 with Google EDLA certification
Gurú support and training (global support in English, 24/5)

Results from Day One

Screen Ready with One Touch
Start the screen instantly and begin your video conference or class without delays.

Compatible with OneScreen AI
Take advantage of the integrated AI suite to streamline classes, presentations and tasks.

Built-in Microphones
8 microphones built into the interactive display chassis for video conferences and hybrid classes.

Official Android, Ready to Use
Enjoy the full power of Android on your interactive display without limitations, thanks to Google EDLA.

Manage Your OneScreen T7 Displays Remotely Through Our Cloud Management Console

Remote app installation. Install apps from the Google Play Store or deploy custom APK files.
Send messages and notifications. Send them to all connected interactive displays with a single click.
Download usage metrics. Analyze usage patterns for applications, websites and schedules.
Power displays on and off. Save time and energy with a single click.
Groups and profiles. Organize your displays into different groups with different policies.

Technical Specifications

Screen Characteristics
Available Sizes	65″, 75″, 86″ and 105″
Panel Type	VA
Response Time	6.5 ms
Aspect Ratio	16:9
Viewing Area	1428.48 (H) × 803.52 (V) mm
Resolution	3840 (H) × 2160 (V) (105″: 5120 × 2160, 5K UHD)
Refresh Rate	60 Hz
Display Colors	1.07 billion (10-bit)
NTSC Coverage	72%
Contrast Ratio	5000:1 (estimated dynamic contrast); 105″: 4000:1
Viewing Angle	178° (H/V)
Backlight Unit	DLED
Brightness with Glass (Min.)	370 cd/m² (65″)
Brightness with Glass (Typ.)	420 cd/m² (65″); 450 cd/m² (75″ and 86″); 400 cd/m² (105″)
Operating Time	24/7
Operating System
Operating System	Android 15 with Google EDLA (105″: Android 13)
RAM	8 GB
Internal Storage	128 GB (105″: 64 GB)
Processor	A76 ×4 + A55 ×4
GPU	Mali-G610 MP4
System Compatibility	Windows, Android, Linux, macOS and Chrome OS
Touch Characteristics
Touch Technology	Infrared (IR) recognition
Writing Tool	Passive infrared pen
Accuracy	±1 mm
Touch Points	Up to 50 simultaneous touch points
Minimum Object Size	2 mm
Writing Height	1 mm
Interpolation Resolution	32768 × 32768
Response Time	≤ 2.5 ms (105″: < 5 ms)
Sound Characteristics
Audio Channels	2.1
Speaker Power	2 × 20 W + 25 W (105″: 2 × 16 W + 15 W)
Sound Pressure Level	86 dB
Built-in Microphones	8 microphones
Pickup Range	Up to 10 m
Power Characteristics
Typical Power Consumption	200 W
Maximum Power Consumption	415 W (with OPS)
Standby Power Consumption	≤ 0.5 W
Ports and Connectivity
HDMI IN	4 ports (up to 4K @60Hz, HDCP 2.x, CEC)
HDMI OUT	1 port (up to 4K @60Hz)
USB 2.0	1 port
USB 3.0	4 ports (2 front, 2 rear)
USB Type-C (Input)	3 ports with video, audio, touch and network
USB Type-C (Output)	1 port (up to 4K @60Hz)
DisplayPort IN	1 port (up to 4K @30Hz)
Audio Input	1 × 3.5 mm jack
Audio Output	1 × 3.5 mm jack
Digital Audio Output	1 × SPDIF (PCM)
Ethernet Network (Input)	RJ45 10/100/1000 Mbps
Ethernet Network (Output)	RJ45 10/100/1000 Mbps
Serial Control	RS232
